MIR Spirobank II Smart Spirometer for Tablets and PC

$200 Cash Rebate: Email the MIR Spirometer Rebate Form and the purchase invoice dated between Nov. 1 and Dec. 31, 2024 to pousa@spirometry.com. Applies to U.S. customers only. Last day to submit rebate is January 15, 2025.

Versatile 3-in-1 Functionality

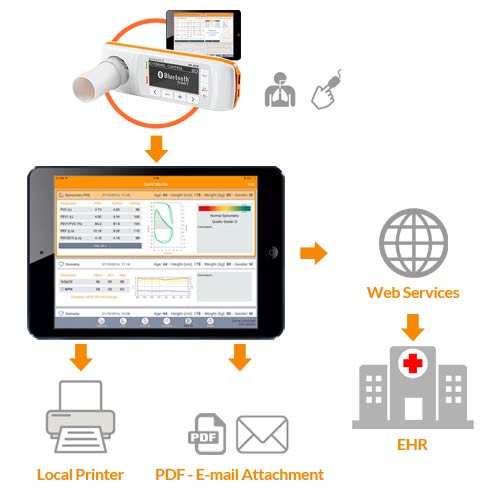

The Spirobank II Smart spirometer offers three modes of use: stand-alone operation, PC connection running MIR Spiro software via USB, and iOS or Android tablet connection running the MIR Spiro app via Bluetooth, providing ultimate flexibility for healthcare professionals.

Comprehensive Spirometry and Oximetry Testing

This device supports a wide range of tests including FVC, VC, MVV, PRE/POST bronchodilator comparison for spirometry, and SpO₂% and BPM measurements for optional oximetry.

Enhanced Patient Engagement

With real-time test displays and a pediatric incentive animation available on both Tablet and PC, the Spirobank II Smart improves patient collaboration during testing.

Seamless EMR/EHR Integration

The device integrates with Electronic Medical/Health Records systems through MIR Spiro software and app, supporting various protocols including HL7, GDT, FHIR, and EXCHANGE PROTOCOL.

Long-lasting Performance

Featuring a rechargeable lithium battery and large internal memory capable of storing up to 10,000 spirometric tests or 500 hours of oximetry, the Spirobank II Smart ensures extended use without frequent charging or data transfers.

Compatible Sensors

Disposable Filter-Turbine Kit

FlowMIR VBMax Turbine Filter Kit for MIR Spirometers

FlowMIR-VBMax turbine-filter kits are disposable in their entirety and allow compliance with enhanced infection control procedures.

Learn more

Product Brochures

MIR Spirobank II Smart Technical Specifications

Spirometry
Size	55 x 160 x 25 mm (2.2 x 6.3 x 1.0 in)
Weight	140 g (battery pack included) 5 oz.
Turbine	FlowMIR-VBMax Disposable PFT Filter Kit FlowMIR Disposable Turbines
Power supply	3.7 V, 1100 mAh Lithium-Ion Rechargeable
Current Consumption	1100 mAh ~20-30 mA (during testing)
Charge Batteries	Voltage=5 V DC Current = minimum 500 mA Connector: micro USB type B Complies with EN 60601-1
Autonomy	50 hours
Connectivity	USB 2.0, Bluetooth® 4.0
Display	monochrome LCD, 160 x 80 pixels
Keyboard	6-key membrane
Mouthpiece	Ø 30 mm (1.18 in)
Type of electrical protection	Powered internally
Safety level Electric shock	Type BF device
IP protection level	IPX1
Terms of use	Device for continuous use
Storage conditions	Temp: MIN -20°C, MAX+60°C Humidity: MIN 10% RH; MAX 95%RH
Operating conditions	Temp: MIN +10°C, MAX +40°C Humidity: MIN 10% RH, MAX 95%RH
Transport conditions	Temp: MIN -40°C, MAX +70°C Humidity: MIN 10% RH, MAX 95%RH
Sensor	two-way digital turbine
Flow range	±16L/s
Volume accuracy	±2.5% or 50mL
Flow accuracy	±5% or 200 mL/s
Dynamic resistance	<0.5 cm H₂O/L/s
Temperature sensor	semiconductor (0-45°C)
Available tests	FVC, VC, IVC, MVV, PRE-POST
Measured parameters (MIR Spiro software via USB)	FVC, FEV1, PEF, FEF75, FEF25-75, FET, FEV1/FVC, FEV6, FEV1/FEV6, FEF25, FEF50, FIVC, FEV1/VC, ELA, MVV(cal), Time to PEF, FEV0.5, FEV0.5/FVC, FEV0.75, FEV0.75/FVC, FEF75-85, Extr. Vol, VC, EVC, IVC, IC, VC, ERV FEV3, FIV1, FIV1/FIVC, PIF, FEV3/FVC, PIF, FEV2, FEV2/FVC, FIF25, FIF50, FIF75, R50, FEV1/PEF (EI), FEV1/FEV0.5 (RFEV), TV, VE, RR, tI
Measured parameters (MIR Spiro app via Bluetooth)	FVC, FEV1, FEV1%, PEF, ELA, FEF25-75, FET, FEF50, FIVC *Available on Android Tablet only
Measured parameters (Stand-Alone mode)	FVC, FEV1, PEF, FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, T-PEF, FEF25-75, FEF75-85, FEF25, FEF50, FEF75, FEV0.5, FEV0.5%, FEV0.75, FEV0.75%, FEV2, FEV2%, FEV3, FEV3/FVC, FEV6, FEV6%, FET, BEV, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, R50, MVVcal, VC, EVC, IVC, IC, ERV, TV, VE, RR, tI, tE, TV/tI, tI/tTot, MVV, ELA Best values
Memory capacity	more than 10,000 tests
Oximetry (Optional Module)
Measurement method	Red and infrared absorption
SpO₂% range	0-99%
Accuracy of SpO₂%	± 2% between 70-99% SpO₂
Average number of beats for SpO₂% calculation	8 beats
Heart Pulse Range	30-300 BPM
Cardiac pulse accuracy	± 2BPM or 2% the greater of the two
Mean interval for calculation of heartbeat	8 seconds
Signal quality indication	0 - 8 segments on screen
Test available	spot
Measured parameters	SpO₂% min, max, average Min, Max, Avg BPM Test duration % Duration of bradycardia (<40 BPM) % Duration of tachycardia (>120 BPM) % Time with SpO₂ ≤ 90% (T90%, T89%)
Memory capacity	about 300 hours of oximetry
