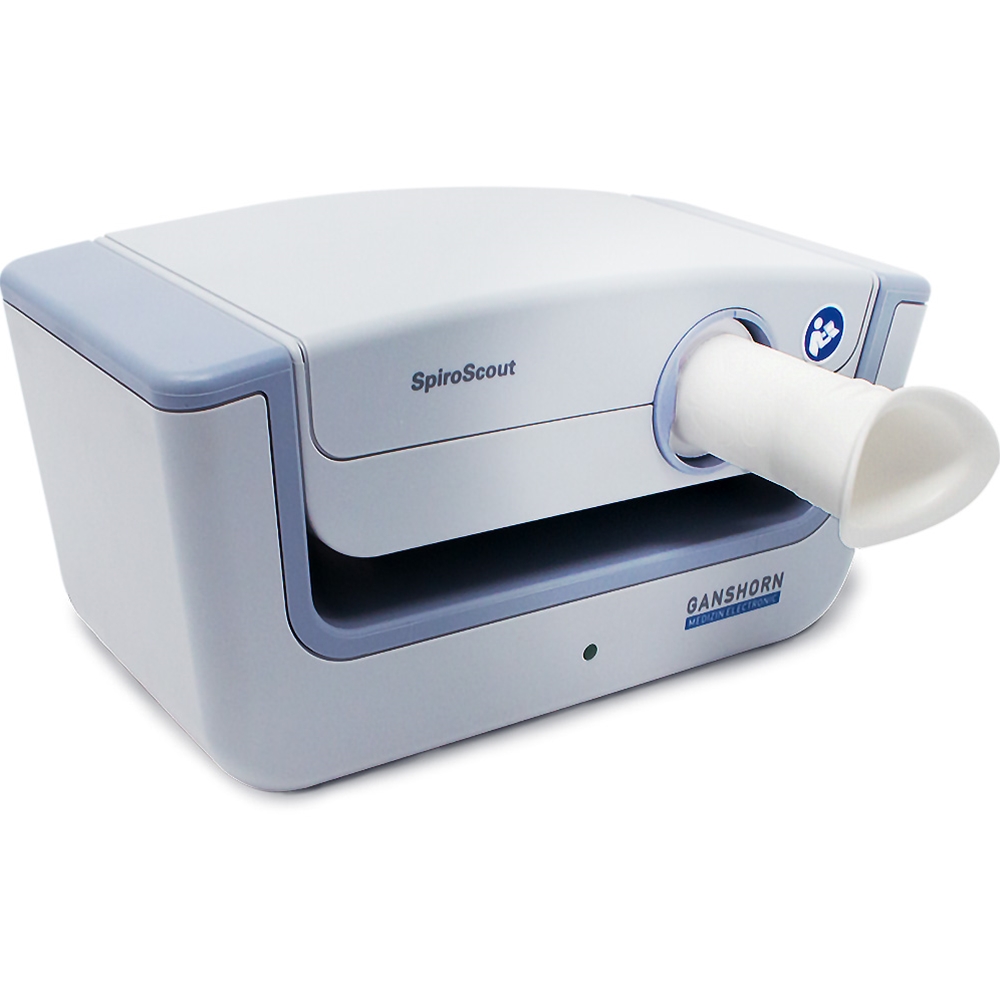

Schiller SpiroScout PC-Based Ultrasound Spirometer

Regular Price: $2,219.00
On Sale For: $1,997.00
Catalog #:320100

The Ganshorn / Schiller SpiroScout is a complete spirometry solution that relies on ultrasound to measure volume and gas exchange in a single measurement.

The SpiroScout spirometer features:

  • High-precision spirometry through direct flow measurement
  • Real-time, automatic BTPS correction, drift free, high accuracy
  • No volume calibration, warm-up time, maintenance, or cleaning necessary
  • No perceptible resistance and extremely high accuracy for low flows
  • Hygienic ScoutTube sensors for single-patient use
  • Sensor is not influenced by humidity, barometric pressure and contamination
  • Different options available such as rhinomanometry, oscillatory resistance, capnovolumetry, emphysema test and dead space analysis
  • Complies with ATS/ERS and OSHA guidelines and conforms to COPD Gold Standards
  • User-friendly LFX software provides customers with:
    • Shorter learning curve
    • Data exchange at will
    • Modern, self-explanatory visual elements
    • Compatible with Windows
    • Network ready
    • Optional HL7 interface and DICOM solutions
    • Free software updates throughout the life of the device

Downloads

SpiroScout Brochure

Includes

  • SpiroScout Base Station
  • SpiroScout Sensor
  • Spiral Cable Sensor to Base Station
  • USB cable
  • Ten (10) Standard Nose Clips
  • 1-Year Warranty
Dimensions
  • Length x Width x Height: 7 in x 3.5 in x 3.5 in
  • Weight: 2.20 lbs
Flow-Measurement
  • Principle: Time
  • Measuring Range: 0 to ±18 L/s
  • Accuracy: < ±2% or 0.03 L/s
  • Resolution: 0.001 L/s
Volume-Measurement
  • Principle: Digital Integration
  • Measuring Range: Not Limited, auto-scaling feature
  • Accuracy: ±2% or 0.05 L
  • Resolution: 1 mL
Measuring range of the Ambient Sensors
  • Ambient Temperature: 0° to 50° C (32° F to 122° F)
  • Atmospheric Pressure: 500 to 1050 mbar
  • Humidity: 10% to 90% rel. (no condensation)
Ambient Conditions
  • Ambient Temperature: +15° to +35° C (59° to 95° F)
  • Atmospheric Pressure: 700 to 1050 hPa/mbar
  • Relative Humidity: 30% to 80% rel. (no condensation)
  • Max. Warm-Up Time: 0 (not measurable at stable ambient conditions)
  • Max. Temperature Gradient: 3° C (37.4° F)/hour
Computer Interface
  • Data transfer to PC: USB 2.0
  • USB connection:
  • Connector A: 2x AWGP24
  • Connector B: 2x AWG28
Power Supply
  • Standard: Powered via USB 2.0 Voltage 4.5 to 5.25 V DC Power Supply: 500 mA
Standards
  • Quality Management: ISO 13485
  • FDA: 510 (k) Market Clearance
  • MDD 93/42/ECC: CE Marked
  • Electrical Safety: EN 60601-1 (Third Edition)
